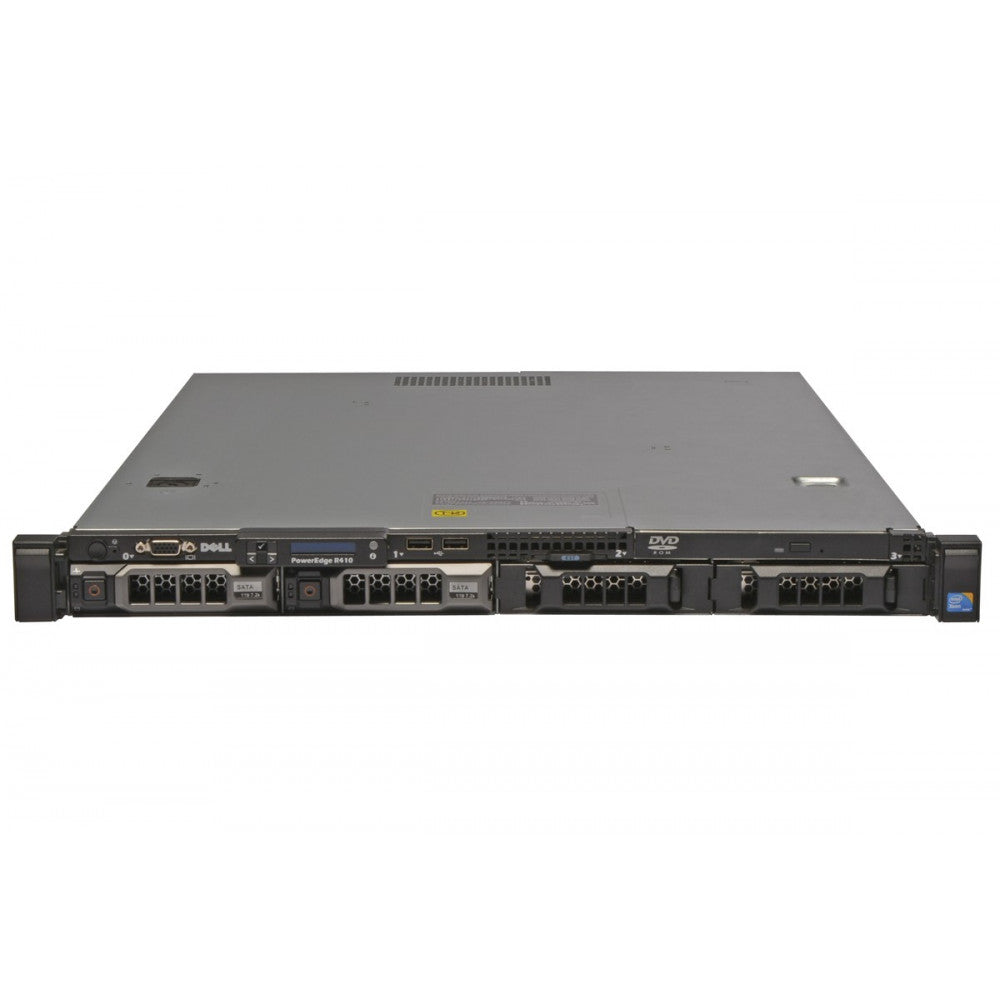

Dell EMC R410 Server – Entry-Level Rack Server

The Dell EMC PowerEdge R410 Server is an entry-level rack server designed to deliver efficient performance and reliability for small to medium-sized businesses. With its 1U form factor, the R410 is ideal for environments with limited space while providing ample computing power for various applications, including file storage, web serving, and basic virtualization.

Here’s an overview of the key specifications for the Dell EMC PowerEdge R410 Server:

Available Processors:

• Supports up to 2x Intel Xeon 5500 or 5600 series processors
• Each processor can have up to 6 cores, providing solid performance for multitasking and processing demands

Available Memory Configurations:

• Up to 12x DDR3 DIMM slots
• Maximum memory capacity of up to 96GB with RDIMMs
• Memory speeds of up to 1333MT/s, ensuring efficient data handling and application responsiveness

Available Storage:

• Supports up to 4x 3.5" or 2.5" hot-swappable drives
• Offers a flexible combination of SAS, SATA, or SSD options, providing a maximum internal storage capacity of up to 8TB
• Hot-swappable capabilities allow for easy maintenance without downtime

RAID Controllers:

• Options for PERC H200, H700, or H800 RAID controllers for enhanced data protection and optimized performance

Available Network Interface:

• 2x 1GbE network ports (standard)
• Optional 10GbE NICs available for improved network throughput and connectivity

Expansion Slots:

• 3x PCIe Gen2 slots for additional network cards, storage controllers, or other expansion options, allowing for future upgrades

Power Supply Options:

• Redundant 550W or 750W hot-plug power supply units (PSUs) to ensure reliable power delivery and high availability

Cooling:

• Efficient thermal management with multiple cooling fans to maintain optimal operating temperatures during heavy workloads

Management:

• Integrated iDRAC6 with Lifecycle Controller for remote management, enabling easy monitoring, updates, and troubleshooting

Operating System Compatibility:

• Supports various operating systems, including Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server

The Dell EMC PowerEdge R410 Server is an excellent entry-level solution for businesses seeking a balance of performance, reliability, and scalability. With its solid processing capabilities, flexible memory and storage options, and efficient management features, the R410 is well-suited for a wide range of applications, making it a valuable addition to any IT infrastructure.
