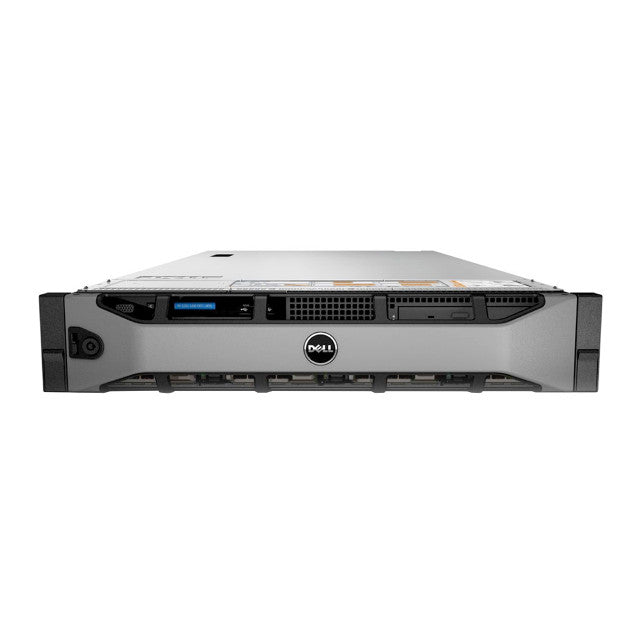

Dell PowerEdge R720XD Server 12LFF – Versatile Enterprise Server

Looking for a versatile server that combines robust performance and flexible storage options? The Dell PowerEdge R720XD 12LFF Rack Server is designed to handle a wide range of enterprise workloads, including virtualization, databases, and data-intensive applications. Offering a balance between storage capacity and processing power, the R720XD with 12 large form factor (LFF) drive bays provides the perfect solution for businesses looking for scalability and reliability in a 2U form factor.

Here’s an overview of the customizable options available for the Dell PowerEdge R720XD 12LFF Server:

Available Processors:

• Up to 2x Intel Xeon E5-2600 or E5-2600 v2 series processors
• Supports up to 12 cores per processor, offering excellent multitasking and parallel processing capabilities

Available Memory Configurations:

• Up to 24x DDR3 DIMM slots
• Maximum memory capacity of up to 768GB with RDIMMs or LRDIMMs
• Memory speeds of up to 1866MT/s for enhanced performance across demanding workloads

Available Storage:

• 12x 3.5" hot-swappable SAS, SATA, or SSD drives
• Supports up to 96TB of internal storage, making it ideal for data-rich applications
• SAS drives for high-capacity, reliable storage and SSDs for performance-intensive tasks

RAID Controllers:

• Dell PERC H310, H710, or H710P RAID controllers for data redundancy and performance optimization

Available Network Interface:

• 4x 1GbE network ports (standard)
• Optional 10GbE NICs or Converged Network Adapters for enhanced network throughput

Expansion Slots:

• 6x PCIe Gen3 expansion slots for additional network cards, storage controllers, or GPUs, providing flexibility for future upgrades

Power Supply Options:

• Redundant 495W, 750W, or 1100W hot-plug power supply units (PSUs) to ensure high availability and reliable performance

Cooling:

• Advanced cooling system with energy-efficient fans and intelligent thermal management for optimized airflow and energy savings

Management:

• iDRAC7 with Lifecycle Controller for comprehensive remote management, monitoring, and automation, ensuring smooth server operations and minimal downtime

Operating System Compatibility:

• Supports major operating systems including Windows Server, VMware ESXi, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server

The Dell PowerEdge R720XD 12LFF Rack Server is a versatile enterprise solution designed for businesses needing a balance of storage capacity, computing power, and scalability. With flexible configuration options and powerful processors, it is an ideal choice for workloads such as virtualization, databases, and big data applications.
