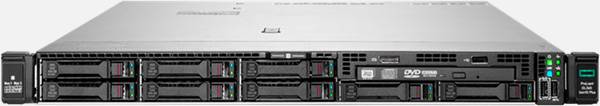

HP DL360 G10 Server 8SFF – Optimized for Dense Environments

The HP ProLiant DL360 Gen10 (DL360 G10) Server 8SFF is a high-performance, compact rack server designed for versatility and reliability in data center environments. With a focus on security, manageability, and efficiency, this 1U server is ideal for virtualization, cloud computing, and mission-critical applications.

Here’s an overview of the key specifications for the HP DL360 G10 Server 8SFF:

Available Processors:

• Supports up to 2x Intel Xeon Scalable processors (up to 28 cores per processor)
• Compatible with Intel Xeon Bronze, Silver, Gold, and Platinum CPUs for flexible scalability
• Provides powerful processing capabilities for demanding workloads and multi-threaded applications

Available Memory Configurations:

• Up to 24x DDR4 DIMM slots
• Supports a maximum of 3TB of memory with LRDIMMs, or 1.5TB with RDIMMs
• Memory speeds up to 2933MT/s for enhanced performance in data-intensive environments

Available Storage:

• 8x 2.5" hot-plug SFF drive bays
• Supports a variety of storage options including SAS, SATA, and NVMe drives
• Flexible configurations for high-capacity storage or high-speed SSDs, enabling optimized performance for diverse workloads

RAID Controllers:

• HPE Smart Array RAID controllers (such as P408i-a or P816i-a) for data redundancy and optimized storage performance
• Support for various RAID levels to ensure data protection and availability

Available Network Interface:

• 4x 1GbE network ports (standard)
• Optional 10GbE or 25GbE NICs available for increased bandwidth and network performance

Expansion Slots:

• Up to 3x PCIe Gen3 expansion slots for additional network cards, storage controllers, or GPUs, offering flexibility for future upgrades

Power Supply Options:

• Redundant 500W, 800W, or 1600W Platinum-rated hot-plug power supply units (PSUs) for enhanced efficiency and reliability

Cooling:

• Advanced thermal management with dynamic fan control, ensuring optimal cooling and reduced noise levels in the data center

Management:

• HPE iLO 5 (Integrated Lights-Out) for remote management, providing features like monitoring, updates, and server automation
• HPE OneView for simplified infrastructure management across the data center

Operating System Compatibility:

• Supports a wide range of operating systems, including Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server

The HP ProLiant DL360 G10 Server 8SFF is an ideal choice for businesses seeking a reliable, high-performance server with flexible storage options. Its compact design, powerful processing capabilities, and advanced management features make it well-suited for virtualization, cloud deployments, and various enterprise applications.
