The Lenovo ThinkStation P510 is a mid-range workstation designed for professionals working with demanding applications like 2D/3D modeling, video editing, and engineering simulations. Here's a breakdown of its potential specifications:

Processors:

• Supports a range of powerful Intel Xeon E5-1600 v4 (Broadwell) or E5-2600 v4 (Broadwell) processors, offering quad-core to high core-count options for multitasking and handling intensive workloads . Specific examples might include:
  • Intel Xeon E5-1620 v4 (4 cores, 4 threads, 3.5 GHz base clock) .
  • Intel Xeon E5-2630 v4 (8 cores, 16 threads, 2.2 GHz base clock) . (These are examples, other processor options might exist).

Memory:

• Eight DDR4 memory channels supporting up to 128GB or even 256GB of DDR4 memory with speeds up to 2400 MHz . This allows for smooth handling of large datasets and memory-intensive applications.

Storage:

• Integrated SATA 6Gb/s controllers for data transfer .
• Supports various storage configurations including:
  • Up to eight internal 3.5-inch or 2.5-inch SATA drives with capacities ranging from 500GB to 4TB (HDD) or 128GB to 1TB (SSD) depending on drive type and configuration .
  • RAID configurations supported for data redundancy (SATA RAID 0, 1, 5, and 10 supported on motherboard; additional RAID options with optional LSI RAID adapter) .

Graphics:

• While the base model might not include a dedicated graphics card, it supports a variety of options depending on configuration [1, 2]. These might include high-performance NVIDIA Quadro or AMD Radeon professional graphics cards suitable for tasks like demanding 3D rendering and video editing.

Form Factor:

• Tower design with dimensions suitable for its capabilities: 48.3 cm (19.0 in) height, 43.2 cm (17.0 in) width, and 44.7 cm (17.6 in) depth .

Other Features:

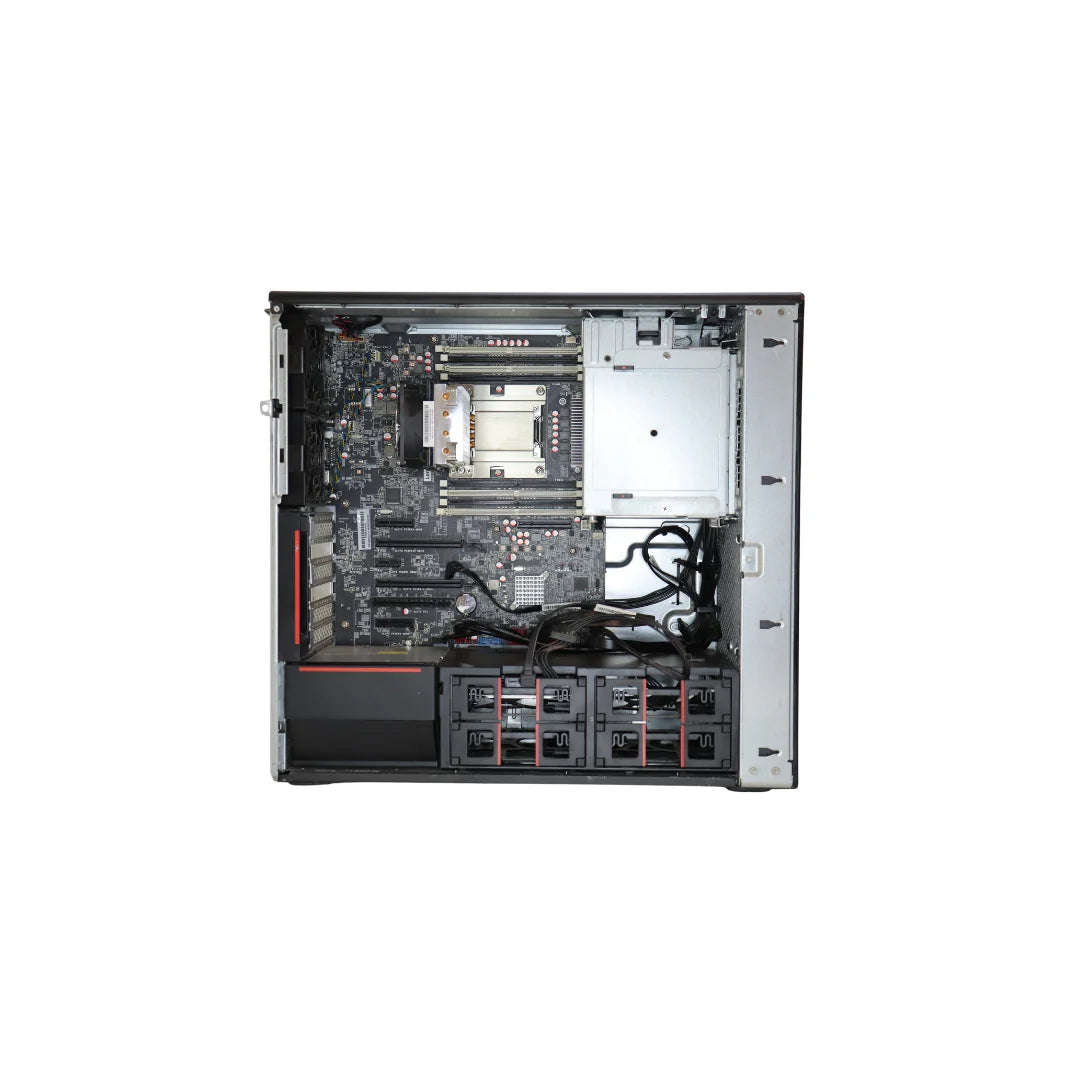

• Easy-access tool-less chassis for internal upgrades and maintenance .
• Depending on configuration, power supply options might range from 450W to 800W or even 1100W for handling demanding workstation workloads.
• Integrated DVD±RW optical drive might be included in some configurations .

Operating System:

• Originally configured for Windows 10, likely compatible with newer versions like Windows 11 with proper driver installation (check Lenovo support for confirmation).
