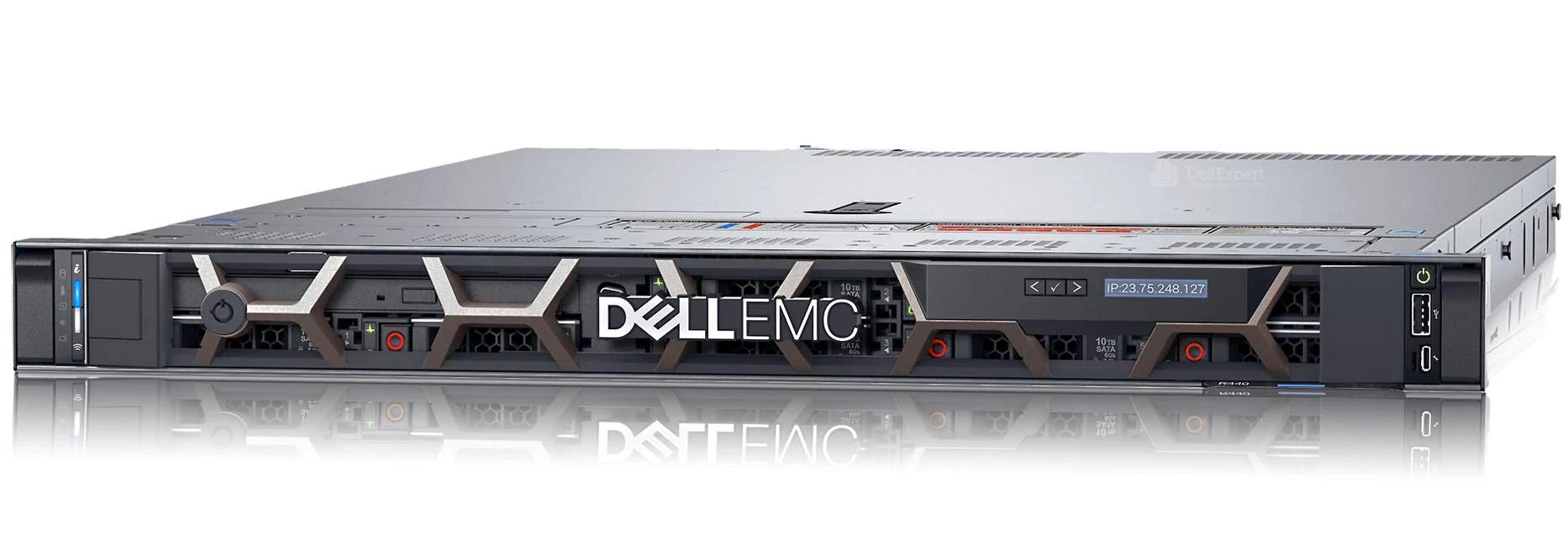

Dell EMC R640 Server – Optimized for Modern Data Centers

The Dell EMC PowerEdge R640 Server is a versatile and powerful 1U rack server designed to meet the demands of modern data centers. Optimized for various workloads such as virtualization, cloud computing, and data analytics, the R640 combines high performance, scalability, and efficiency in a compact design.

Here’s a detailed overview of the Dell EMC R640 Server:

Available Processors:

• Supports up to 2x Intel Xeon Scalable processors (up to 28 cores per processor)
• Compatible with Intel Xeon Bronze, Silver, Gold, and Platinum processors for tailored performance and efficiency

Available Memory Configurations:

• Up to 24x DDR4 DIMM slots
• Maximum memory capacity of up to 3TB using LRDIMMs or 1.5TB with RDIMMs
• Memory speeds up to 2933MT/s, ensuring fast data access and enhanced application performance

Available Storage:

• 8x 2.5" hot-swappable drives supporting SAS, SATA, or NVMe technologies
• Flexible configuration options allow for a combination of HDDs and SSDs to optimize both performance and capacity
• NVMe support for ultra-fast data access and lower latency, ideal for high-performance applications

RAID Controllers:

• Dell PERC H330, H730P, or H740P RAID controllers for improved data protection and performance management

Available Network Interface:

• 4x 1GbE network ports (standard)
• Optional 10GbE, 25GbE, or 40GbE network interface cards for high-speed networking and increased bandwidth

Expansion Slots:

• Up to 3x PCIe Gen3 slots for additional network cards, GPUs, or storage controllers, providing flexibility for future expansion

Power Supply Options:

• Redundant 495W, 750W, or 1100W Platinum-rated hot-plug power supply units (PSUs) for reliable power delivery and energy efficiency

Cooling:

• Advanced cooling architecture with intelligent, adaptive fans that optimize airflow based on server workload, ensuring efficient thermal management

Management:

• iDRAC9 with Lifecycle Controller for comprehensive remote management, enabling efficient monitoring, updates, and automation of server tasks
• Integration with OpenManage Enterprise for streamlined management and automation across the data center

Operating System Compatibility:

• Supports a wide range of operating systems, including Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server

The Dell EMC PowerEdge R640 Server is designed for organizations seeking a powerful and flexible solution for their data center needs. With its robust performance capabilities, extensive memory and storage options, and advanced management features, the R640 is well-suited for a variety of applications, from virtualization to high-performance computing.
