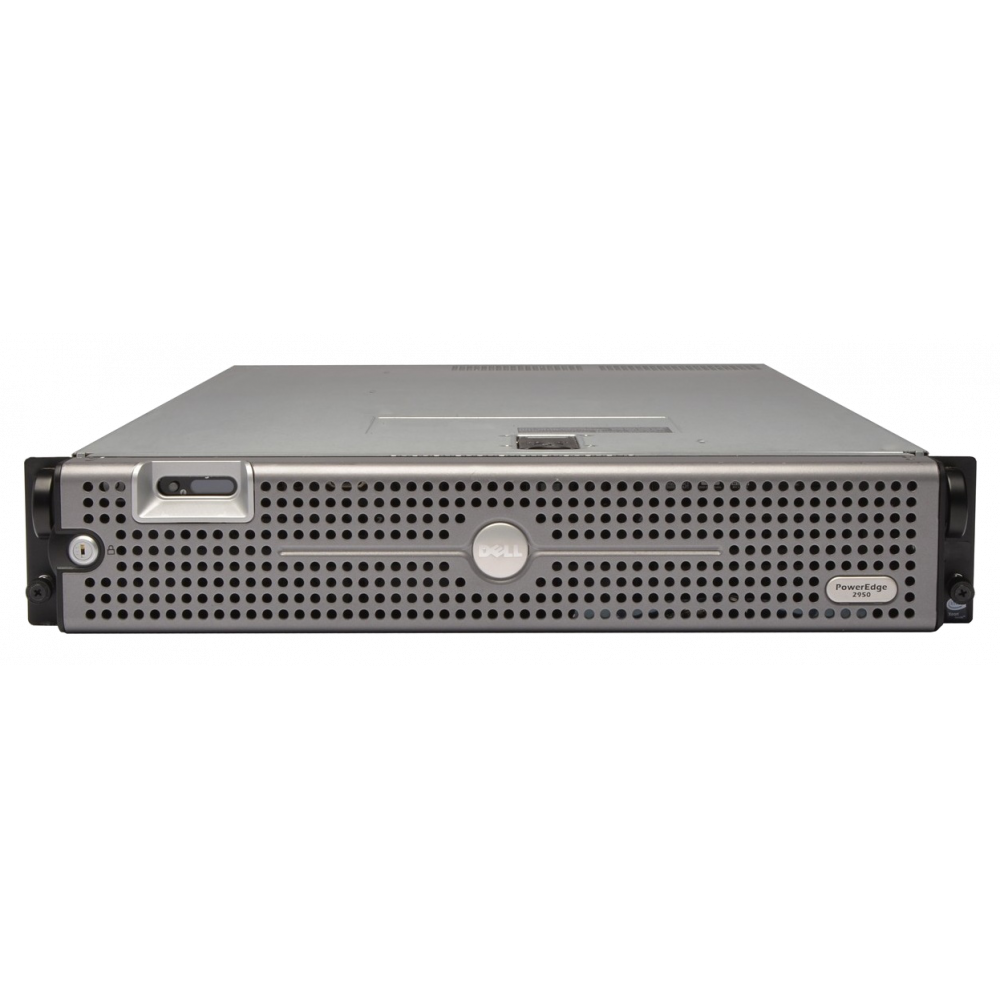

Dell PowerEdge 2950 Server 6LFF – Legacy High-Capacity Server

The Dell PowerEdge 2950 Server is a powerful and versatile 2U rack server designed for enterprise-level applications and demanding workloads. With support for 6 large form factor (LFF) drives, the PowerEdge 2950 offers a robust solution for businesses requiring high performance, reliability, and scalability for applications such as virtualization, databases, and web services.

Key Specifications for the Dell PowerEdge 2950 Server:

Available Processors:

• Supports up to 2x Intel Xeon 5000 series or 5100 series processors
• Each processor can have up to 4 cores, providing solid performance for multitasking and resource-intensive applications

Available Memory Configurations:

• Up to 16x DDR2 DIMM slots
• Maximum memory capacity of up to 128GB with Registered DIMMs (RDIMMs)
• Memory speeds of up to 667MT/s or 800MT/s, ensuring efficient data processing

Available Storage:

• 6x 3.5" hot-swappable SAS, SATA, or SSD drives
• Supports a maximum internal storage capacity of up to 12TB, offering ample space for various data-intensive applications
• Hot-swappable drives allow for easy maintenance and upgrades without downtime

RAID Controllers:

• Options for PERC 5/i, PERC 6/i, or PERC H700 RAID controllers for improved data protection and storage performance

Available Network Interface:

• 4x 1GbE network ports (standard)
• Optional 10GbE NICs for enhanced network performance and increased bandwidth

Expansion Slots:

• 5x PCIe and PCI-X slots for additional network cards, storage controllers, or other expansion options, allowing for future upgrades

Power Supply Options:

• Redundant 750W or 1100W hot-plug power supply units (PSUs) for high availability and reliable power delivery

Cooling:

• Efficient thermal management with multiple cooling fans, designed to maintain optimal operating temperatures during demanding workloads

Management:

• Integrated iDRAC6 with Lifecycle Controller for remote management, enabling easy monitoring, updates, and troubleshooting

Operating System Compatibility:

• Supports a variety of operating systems, including Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server

The Dell PowerEdge 2950 Server is a robust solution for organizations looking to enhance their IT infrastructure. With its powerful processing capabilities, ample memory options, and flexible storage configurations, the PowerEdge 2950 is well-suited for a wide range of applications, providing a reliable foundation for enterprise-level workloads.
