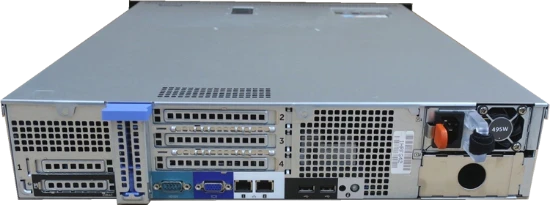

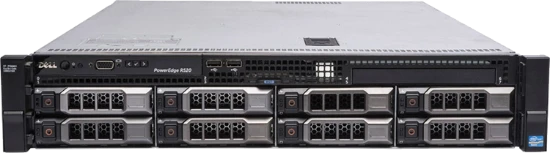

Dell PowerEdge R520 Server 8LFF – High Capacity Storage Server

The Dell PowerEdge R520 8LFF Rack Server is designed as a high-capacity storage solution, making it ideal for businesses that require substantial storage for data-intensive applications, virtualization, and backup solutions. With its 2U form factor and support for 8 large form factor (LFF) drives, the R520 offers a blend of performance, capacity, and reliability to meet the needs of modern data centers.

Here’s an overview of the key specifications for the Dell PowerEdge R520 8LFF Server:

Available Processors:

• Up to 2x Intel Xeon E5-2600 or E5-2600 v2 series processors
• Supports up to 12 cores per processor, providing robust processing power for various workloads

Available Memory Configurations:

• Up to 16x DDR3 DIMM slots
• Maximum memory capacity of up to 768GB with RDIMMs or LRDIMMs
• Memory speeds up to 1600MT/s, enhancing data access and overall server performance

Available Storage:

• 8x 3.5" hot-swappable SAS, SATA, or SSD drives
• Supports up to 32TB of internal storage capacity, ideal for applications that require significant data storage
• Hot-swappable capability allows for easy replacement and upgrades without downtime

RAID Controllers:

• Dell PERC H310, H710, or H710P RAID controllers for improved data redundancy and storage performance

Available Network Interface:

• 4x 1GbE network ports (standard)
• Optional 10GbE NICs for enhanced networking performance and bandwidth

Expansion Slots:

• 4x PCIe Gen3 expansion slots for additional network cards, storage controllers, or other add-in cards, allowing for future upgrades and scalability

Power Supply Options:

• Redundant 550W or 750W hot-plug power supply units (PSUs) to ensure high availability and reliable performance

Cooling:

• Efficient cooling system with multiple fan options designed to optimize airflow based on workload, ensuring consistent performance under load

Management:

• iDRAC7 with Lifecycle Controller for remote management, including monitoring, updates, and automation of routine tasks
• OpenManage tools for simplified management across the data center

Operating System Compatibility:

• Compatible with major operating systems including Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server

The Dell PowerEdge R520 8LFF Rack Server is an excellent choice for organizations needing high-capacity storage combined with reliable performance. Its versatile configuration options and robust design make it suitable for a variety of applications, including file storage, backup, and virtualization, ensuring that your business can efficiently manage and scale its data needs.
