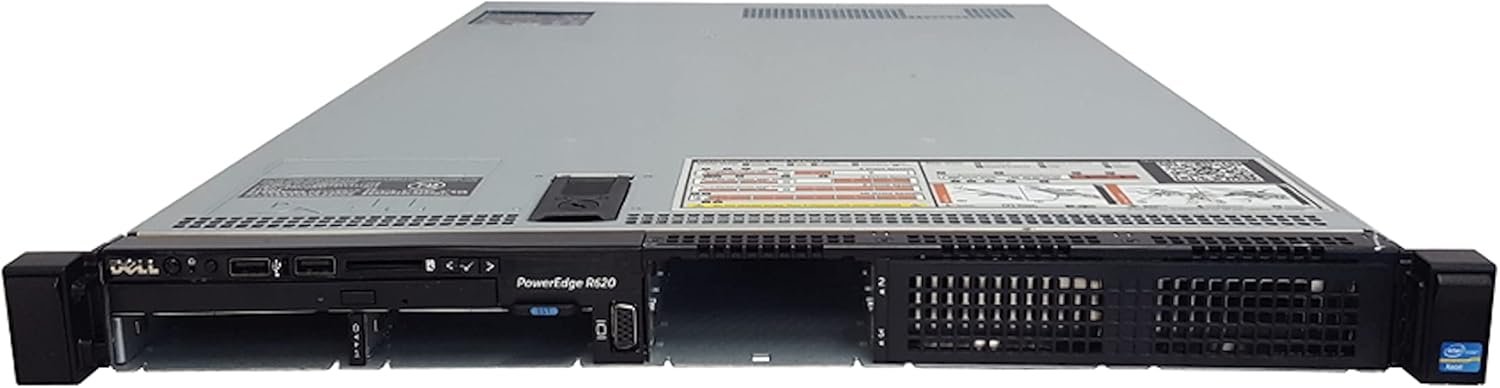

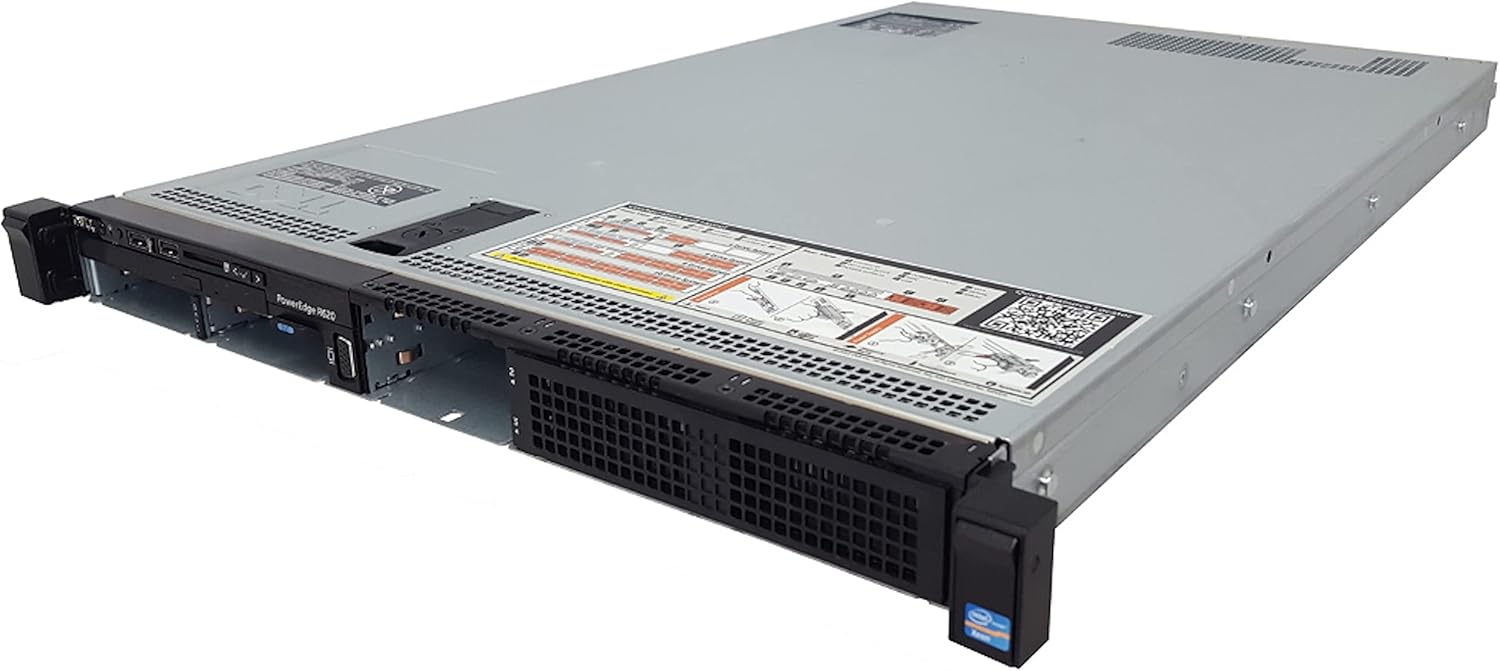

Dell PowerEdge R620 Server 4SFF – Energy-Efficient Rack Server

The Dell PowerEdge R620 4SFF Rack Server is a compact and powerful 1U server optimized for performance and efficiency, making it ideal for virtualization, cloud computing, and data-intensive applications. With its innovative design and advanced features, the R620 delivers exceptional capabilities while conserving valuable data center space.

Here’s an overview of the Dell PowerEdge R620 4SFF Server:

Available Processors:

• Supports up to 2x Intel Xeon E5-2600 or E5-2600 v2 processors (up to 12 cores per processor)
• Provides high-performance processing power tailored for demanding workloads

Available Memory Configurations:

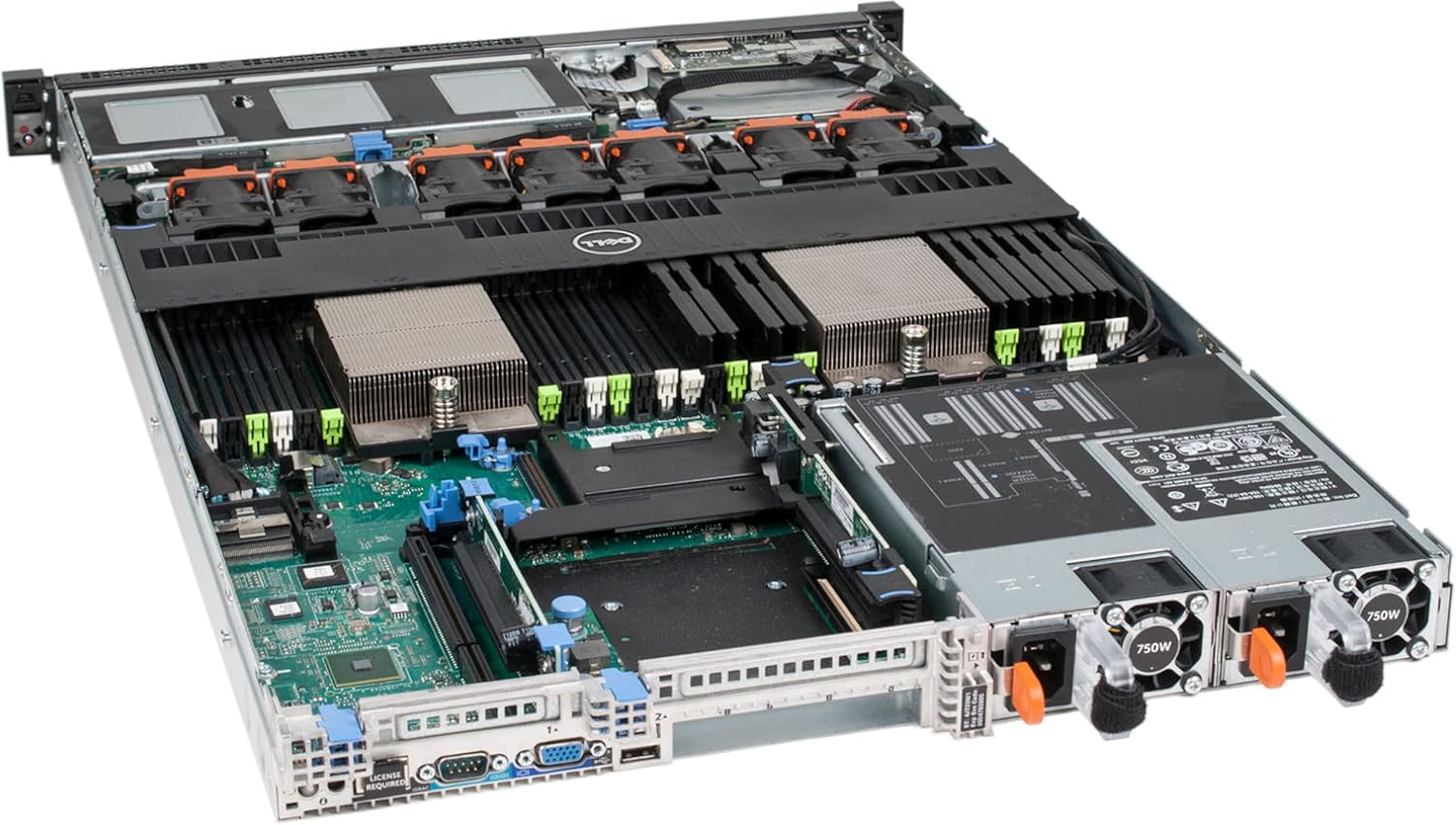

• Up to 24x DDR3 DIMM slots
• Maximum memory capacity of up to 768GB using RDIMMs or 1.5TB with LRDIMMs
• Memory speeds up to 1866MT/s, ensuring fast data access and improved application performance

Available Storage:

• 4x 2.5" hot-swappable drives supporting SAS, SATA, or SSD technologies
• Offers a flexible storage configuration that supports a mix of HDDs and SSDs for optimal performance and capacity

RAID Controllers:

• Dell PERC H310, H710, or H710P RAID controllers for enhanced data protection and improved storage performance

Available Network Interface:

• 2x 1GbE network ports (standard)
• Optional 10GbE network interface cards for higher bandwidth and improved connectivity options

Expansion Slots:

• Up to 3x PCIe Gen3 slots for additional network cards, storage controllers, or GPUs, allowing for scalability and future upgrades

Power Supply Options:

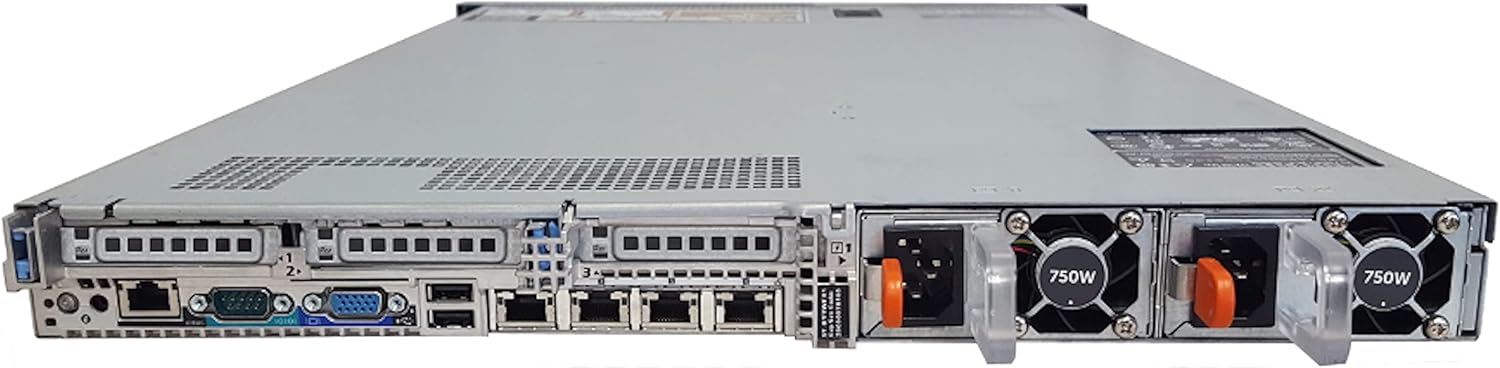

• Redundant 550W or 750W hot-plug power supply units (PSUs) for reliable power delivery and high availability

Cooling:

• Efficient cooling system with intelligent fan technology that adjusts airflow based on workload demands, ensuring optimal thermal management

Management:

• iDRAC7 with Lifecycle Controller for advanced remote management capabilities, enabling monitoring, updates, and automation of server tasks
• Integration with OpenManage for streamlined management across the data center

Operating System Compatibility:

• Supports a wide range of operating systems, including Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server

The Dell PowerEdge R620 4SFF Rack Server is designed for organizations seeking a high-performance and space-efficient solution for their critical applications. Its robust architecture, extensive memory and storage options, and advanced management features make it a reliable choice for businesses looking to enhance their IT infrastructure in a compact form factor.
