Dell PowerEdge R710 Server 6LFF – Performance Server for SMBs

The Dell PowerEdge R710 6LFF Rack Server is designed as a high-performance solution for small to medium-sized businesses (SMBs) seeking reliability and scalability in a compact 2U form factor. With its support for up to 6 large form factor (LFF) drives, the R710 provides ample storage capacity along with powerful processing capabilities, making it ideal for a variety of applications, including virtualization, database management, and business-critical workloads.

Here’s an overview of the key specifications for the Dell PowerEdge R710 6LFF Server:

Available Processors:

• Up to 2x Intel Xeon 5500 or 5600 series processors
• Supports up to 6 cores per processor, delivering substantial processing power for demanding applications

Available Memory Configurations:

• Up to 18x DDR3 DIMM slots
• Maximum memory capacity of up to 192GB with RDIMMs or 288GB with LRDIMMs
• Memory speeds up to 1333MT/s, ensuring efficient data processing and enhanced application performance

Available Storage:

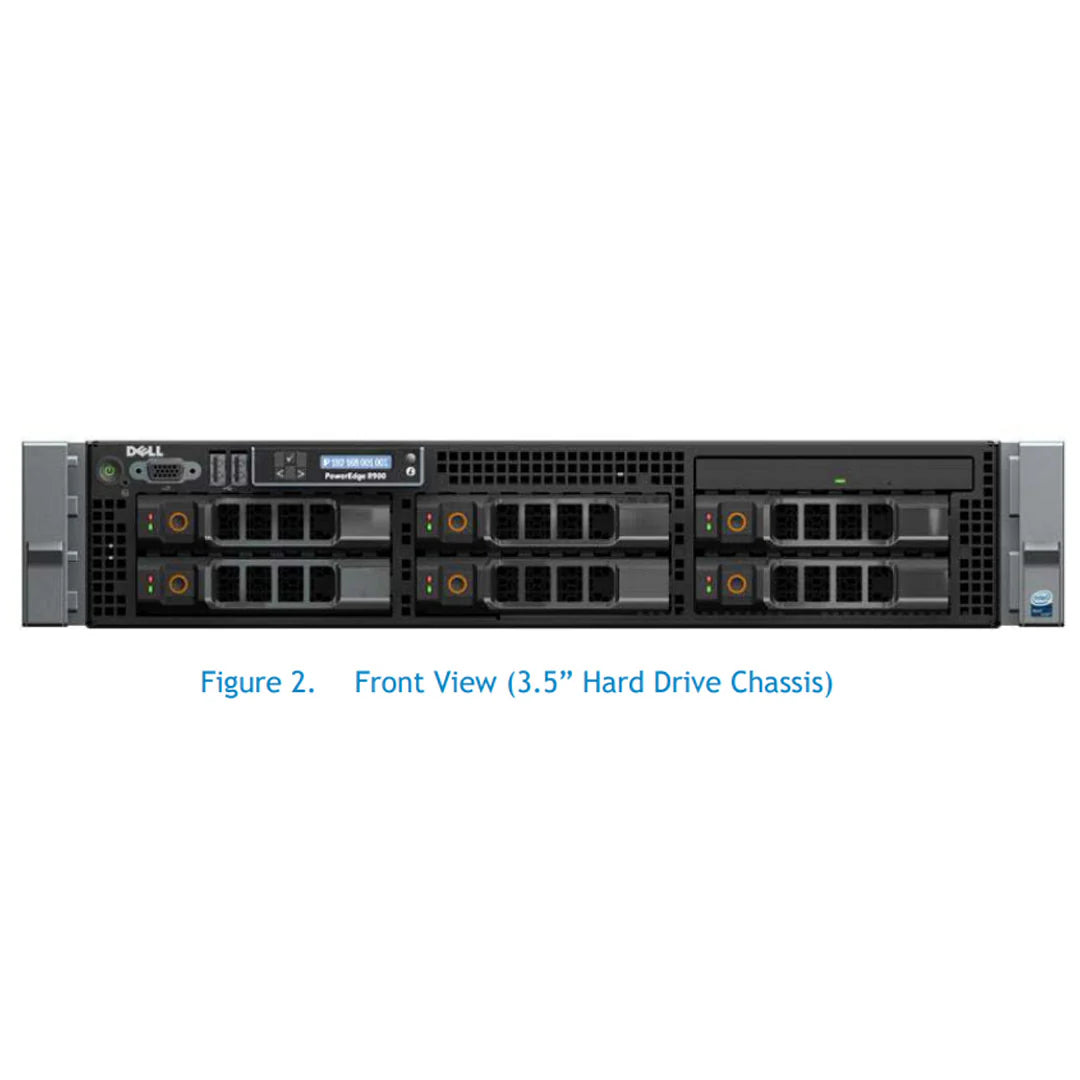

• 6x 3.5" hot-swappable SAS or SATA drives
• Supports a maximum internal storage capacity of up to 24TB, providing ample space for data storage and backup
• Hot-swappable capability allows for easy drive replacement without server downtime

RAID Controllers:

• Dell PERC H200, H700, or H800 RAID controllers for enhanced data protection and performance optimization

Available Network Interface:

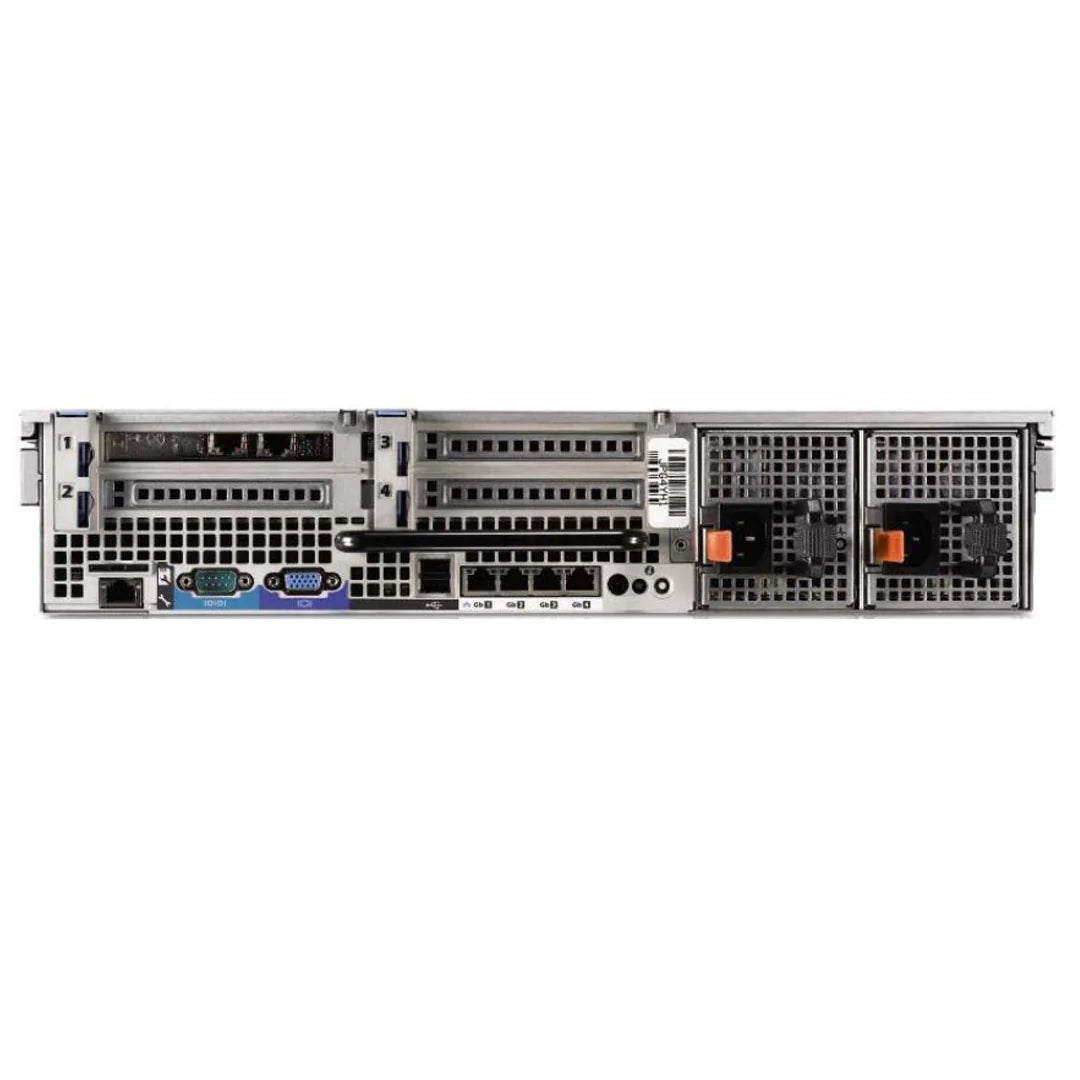

• 4x 1GbE network ports (standard)
• Optional 10GbE NICs for increased networking speed and bandwidth

Expansion Slots:

• 6x PCIe Gen2 expansion slots for additional network cards, storage controllers, or GPUs, allowing for future upgrades and scalability

Power Supply Options:

• Redundant 550W or 750W hot-plug power supply units (PSUs) to ensure high availability and consistent performance

Cooling:

• Advanced cooling system with energy-efficient fans and intelligent thermal management, ensuring optimal airflow and temperature regulation

Management:

• iDRAC6 with Lifecycle Controller for comprehensive remote management, allowing for easy monitoring, firmware updates, and automation of server tasks

Operating System Compatibility:

• Supports major operating systems, including Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server

The Dell PowerEdge R710 6LFF Rack Server is a reliable and high-performance choice for SMBs looking to enhance their IT infrastructure. With its robust processing power, flexible memory configurations, and ample storage options, the R710 is well-suited for a variety of workloads, ensuring your business can efficiently manage its critical applications and data.
