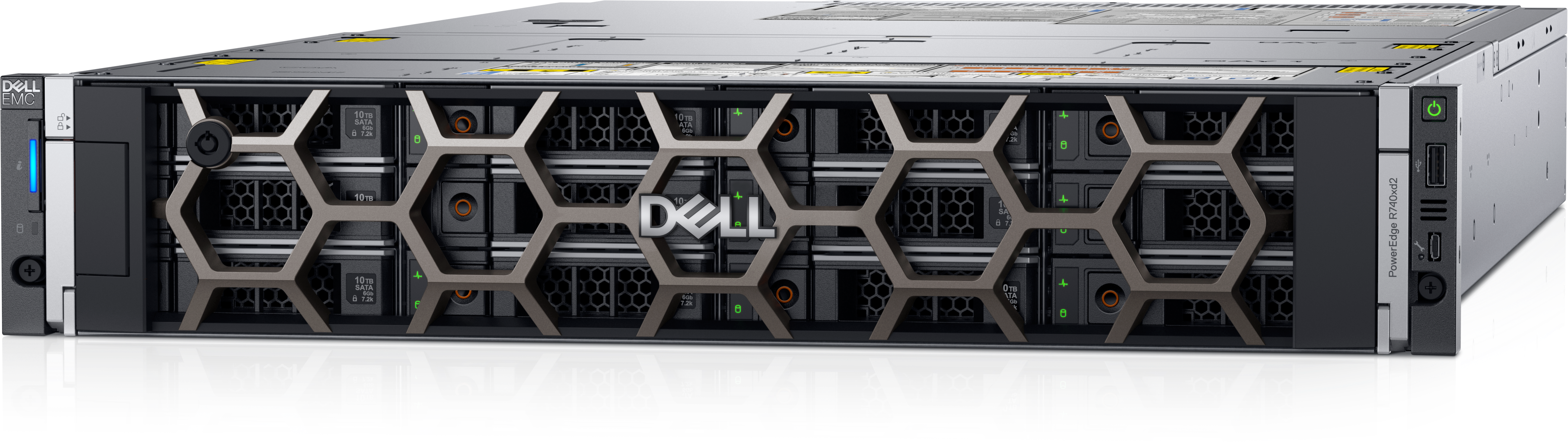

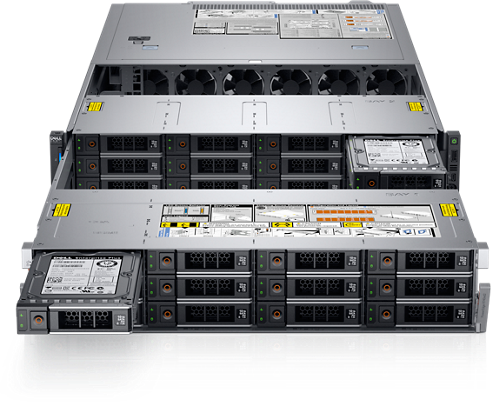

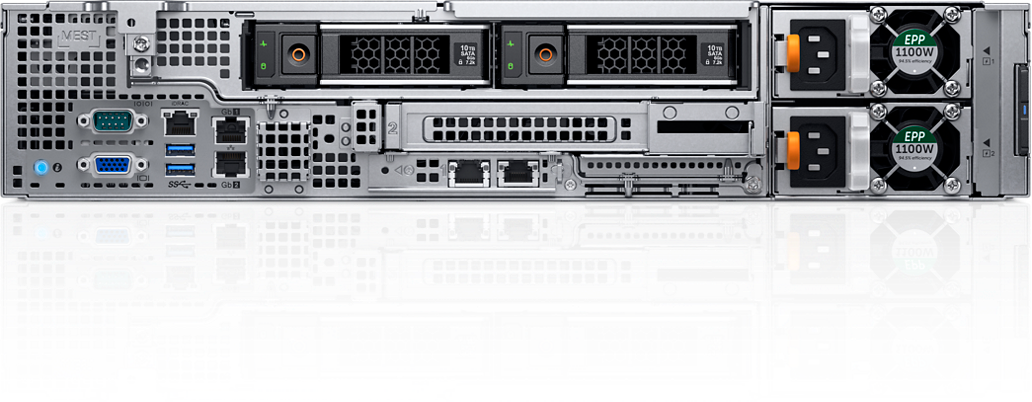

Dell PowerEdge R740xd2 Server 26LFF – Large Storage Capacity Server

The Dell PowerEdge R740xd2 Server is engineered for businesses that require large storage capacity and exceptional performance in a 2U form factor. With support for up to 26 large form factor (LFF) drives, the R740xd2 is ideal for data-intensive applications such as data analytics, virtualization, and cloud environments, providing a scalable solution to meet growing storage demands.

Here’s an overview of the key specifications for the Dell PowerEdge R740xd2 26LFF Server:

Available Processors:

• Up to 2x Intel Xeon Scalable processors (up to 28 cores per processor)
• Supports Intel Xeon Bronze, Silver, Gold, and Platinum CPUs, offering flexibility for various performance needs

Available Memory Configurations:

• Up to 24x DDR4 DIMM slots
• Maximum memory capacity of up to 3TB with LRDIMMs or 1.5TB with RDIMMs
• Memory speeds up to 2933MT/s, ensuring high throughput and fast data access for demanding applications

Available Storage:

• 26x 3.5" hot-swappable LFF drives
• Supports a maximum internal storage capacity of up to 182TB, making it suitable for large-scale data storage and backup
• Flexible configurations with SAS, SATA, or NVMe drives to optimize performance and capacity

RAID Controllers:

• Dell PERC H330, H730P, or H740P RAID controllers for enhanced data protection, performance, and flexibility in storage management

Available Network Interface:

• 4x 1GbE network ports (standard)
• Optional 10GbE, 25GbE, or 40GbE NICs for high-speed networking and increased bandwidth to support data-intensive applications

Expansion Slots:

• Up to 7x PCIe Gen3 slots for additional network cards, storage controllers, or GPUs, allowing for future upgrades and enhanced capabilities

Power Supply Options:

• Redundant 750W or 1100W hot-plug power supply units (PSUs) to ensure high availability and reliable performance under load

Cooling:

• Advanced thermal management with energy-efficient fans and optimized airflow design to maintain optimal operating temperatures

Management:

• iDRAC9 with Lifecycle Controller for comprehensive remote management, enabling easy monitoring, firmware updates, and automation of server tasks
• OpenManage Enterprise for streamlined management across the data center

Operating System Compatibility:

• Supports major operating systems including Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server

The Dell PowerEdge R740xd2 26LFF Server is the perfect choice for organizations needing a robust storage solution combined with powerful processing capabilities. With its large storage capacity, flexible configuration options, and advanced management features, the R740xd2 is well-suited for data-heavy workloads, ensuring your business can efficiently store and manage critical information.
