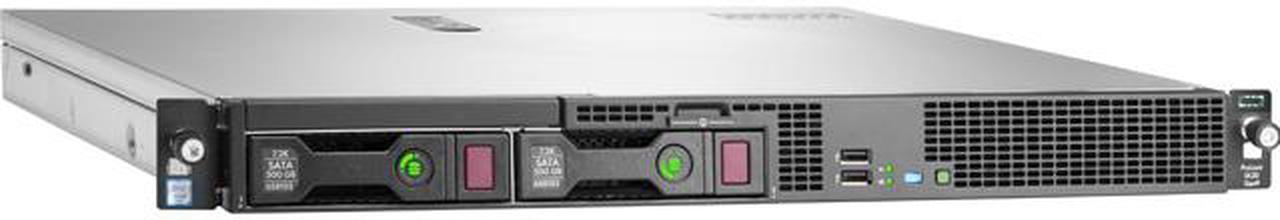

HP DL20 G9 Server 2LFF – Entry-Level Rack Server

The HP ProLiant DL20 Gen9 (DL20 G9) Server 2LFF is a compact and versatile 1U rack server designed to meet the needs of small to medium-sized businesses. Offering reliable performance for a variety of workloads, including file sharing, web hosting, and virtualization, the DL20 G9 is an ideal entry-level server solution.

Key Specifications for the HP DL20 G9 Server 2LFF:

Available Processors:

• Supports up to 1x Intel Xeon E3-1200 v5 or v6 series processors (up to 4 cores)
• Provides strong processing capabilities for handling everyday business applications and workloads

Available Memory Configurations:

• Up to 4x DDR4 DIMM slots
• Maximum memory capacity of up to 64GB with RDIMMs
• Supports memory speeds of up to 2400MT/s, ensuring efficient data access for applications

Available Storage:

• 2x 3.5" LFF (Large Form Factor) drive bays
• Supports a mix of SATA and SAS drives, offering flexibility in storage configurations based on performance and capacity requirements
• Suitable for high-capacity storage needs in a compact server footprint

RAID Controllers:

• HPE Smart Array B140i controller for basic RAID support, with options for additional RAID controllers for enhanced data protection
• Supports various RAID levels to ensure data integrity and availability

Available Network Interface:

• 2x 1GbE network ports (standard)
• Optional 10GbE NICs available for increased bandwidth and networking capabilities

Expansion Slots:

• Up to 2x PCIe expansion slots for additional network cards or storage controllers, providing room for future upgrades

Power Supply Options:

• Redundant 350W or 500W power supply options for reliability and energy efficiency

Cooling:

• Efficient thermal management with intelligent fan control, ensuring optimal cooling and performance during operation

Management:

• HPE iLO 4 (Integrated Lights-Out) for remote management, allowing monitoring, updates, and automation of server tasks

Operating System Compatibility:

• Supports a wide range of operating systems, including Microsoft Windows Server, VMware ESXi, and various Linux distributions

The HP ProLiant DL20 G9 Server 2LFF is designed for organizations looking for a compact, reliable, and efficient server solution. With its solid processing capabilities, flexible memory and storage options, and easy management features, it is an excellent choice for small to medium-sized businesses aiming to enhance their IT infrastructure.
