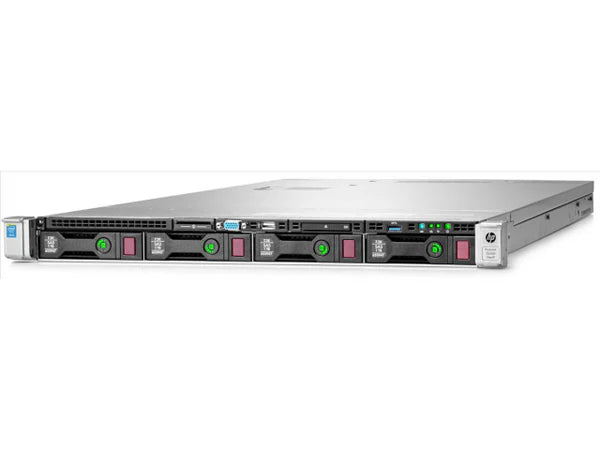

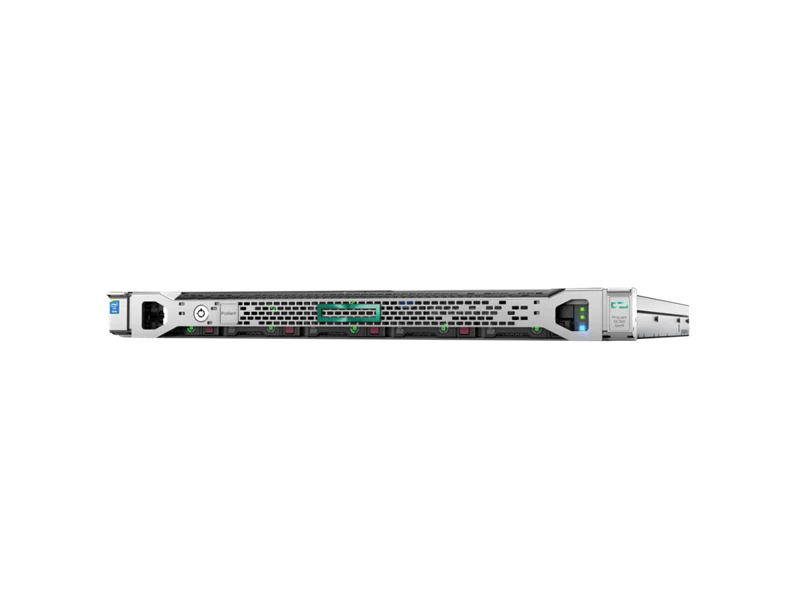

HP DL360 G9 Server 8SFF – Compact, High-Performance Server

The HP ProLiant DL360 Gen9 (DL360 G9) Server 8SFF is a compact and powerful 1U rack server designed for high performance and versatility in demanding enterprise environments. Ideal for virtualization, cloud computing, and data-intensive applications, the DL360 G9 combines robust processing power with flexible storage options.

Key Specifications for the HP DL360 G9 Server 8SFF:

Available Processors:

• Supports up to 2x Intel Xeon E5-2600 v3 or v4 processors (up to 22 cores per processor)
• Delivers strong multi-threaded performance for efficient workload management

Available Memory Configurations:

• Up to 24x DDR4 DIMM slots
• Maximum memory capacity of up to 3TB with LRDIMMs, or 1.5TB with RDIMMs
• Memory speeds of up to 2400MT/s, providing quick access and improved application performance

Available Storage:

• 8x 2.5" hot-plug SFF drive bays
• Supports a mix of SAS, SATA, and SSDs, allowing for flexible configurations based on performance or capacity needs
• Enables high-performance storage options for data-intensive applications

RAID Controllers:

• HPE Smart Array RAID controllers (such as P440ar or P840) for enhanced data protection and optimized storage performance
• Multiple RAID configurations supported to ensure data integrity and availability

Available Network Interface:

• 4x 1GbE network ports (standard)
• Optional 10GbE NICs available for increased bandwidth and networking performance

Expansion Slots:

• Up to 3x PCIe Gen3 expansion slots for additional network cards, storage controllers, or GPUs, providing room for future upgrades

Power Supply Options:

• Redundant 500W, 800W, or 1600W Platinum-rated hot-plug power supply units (PSUs) for reliability and energy efficiency

Cooling:

• Advanced thermal management with intelligent fan control, ensuring optimal cooling and reduced energy consumption

Management:

• HPE iLO 4 (Integrated Lights-Out) for comprehensive remote management, enabling monitoring, updates, and automation of server tasks
• HPE OneView for centralized infrastructure management, improving operational efficiency

Operating System Compatibility:

• Supports a wide range of operating systems, including Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server

The HP ProLiant DL360 G9 Server 8SFF is designed for businesses that require a compact yet powerful server solution. With its robust processing capabilities, extensive memory options, and flexible storage configurations, it is an ideal choice for virtualization, cloud applications, and critical workloads in enterprise environments.
