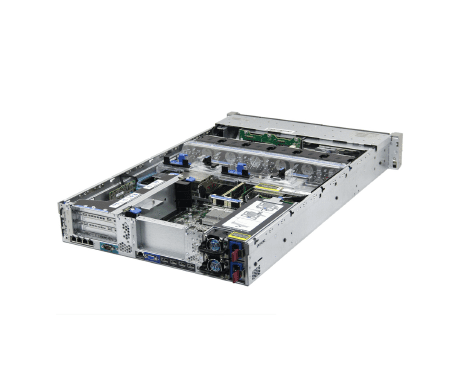

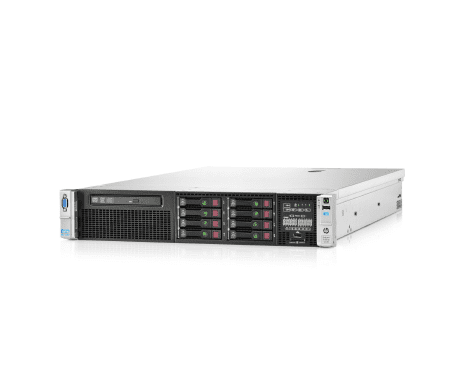

HP DL380 G8 Server 26SFF – Powerful Server for Large Workloads

The HP ProLiant DL380 Gen8 (DL380 G8) Server 26SFF is a highly adaptable 2U rack server designed for enterprise environments requiring exceptional performance, scalability, and reliability. It is particularly well-suited for virtualization, database management, and critical applications, offering a robust platform for various workloads.

Key Specifications for the HP DL380 G8 Server 26SFF:

Available Processors:

• Supports up to 2x Intel Xeon E5-2600 v1 or v2 series processors (up to 12 cores per processor)
• Delivers powerful multi-threaded performance for demanding applications and workloads

Available Memory Configurations:

• Up to 24x DDR3 DIMM slots
• Maximum memory capacity of up to 768GB with RDIMMs or 1.5TB with LRDIMMs
• Supports memory speeds of up to 1866MT/s, ensuring fast data access and improved application performance

Available Storage:

• 26x 2.5" hot-plug SFF (Small Form Factor) drive bays
• Supports a variety of storage options, including SAS, SATA, and SSDs, allowing for flexible configurations based on performance and capacity needs
• Ideal for environments requiring high-density storage and data-intensive applications

RAID Controllers:

• HPE Smart Array P220i, P420, or P440ar RAID controllers for enhanced data protection and optimized storage performance
• Supports multiple RAID levels to ensure data integrity and availability

Available Network Interface:

• 4x 1GbE network ports (standard)
• Optional 10GbE or higher NICs available for increased bandwidth and networking capabilities

Expansion Slots:

• Up to 7x PCIe Gen3 expansion slots for additional network cards, storage controllers, or GPUs, providing ample room for future upgrades

Power Supply Options:

• Redundant 460W, 750W, or 1200W Platinum-rated hot-plug power supply units (PSUs) for reliability and energy efficiency

Cooling:

• Advanced thermal management with intelligent fan control, ensuring optimal cooling and energy efficiency during operation

Management:

• HPE iLO 4 (Integrated Lights-Out) for comprehensive remote management, allowing monitoring, updates, and automation of server tasks
• HPE OneView for centralized management, enhancing operational efficiency

Operating System Compatibility:

• Supports a wide range of operating systems, including Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server

The HP ProLiant DL380 G8 Server 26SFF is an excellent choice for organizations looking for a high-performance, scalable server solution. With its robust processing power, extensive memory capacity, and flexible storage options, it is designed to meet the needs of today’s data-driven environments, ensuring optimal performance for various enterprise applications.
