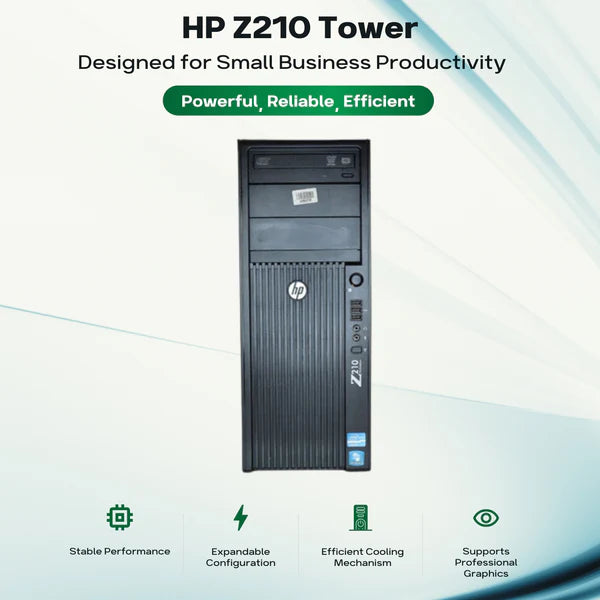

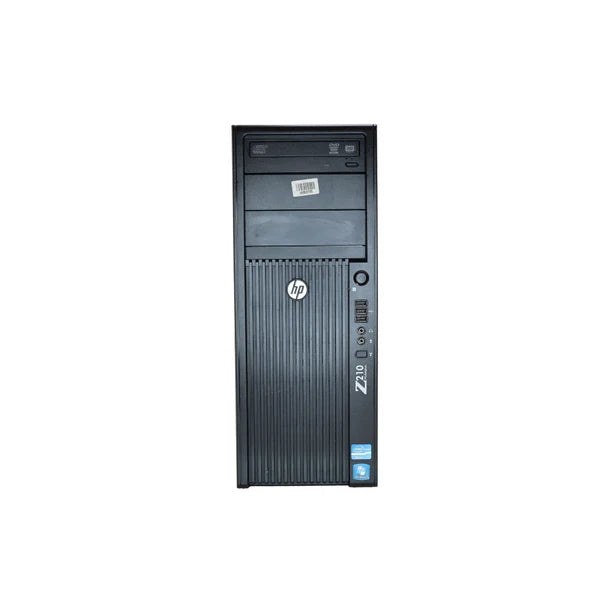

The HP Z210 Tower Workstation is a professional workstation designed for tasks requiring a balance of performance and affordability. It was released in 2011 and is considered a legacy model at this point. Here's a breakdown of its technical details:

Processors

• Supports Intel Xeon E3-1200 family processors (Z210) [1]. Options include:
  • Intel Xeon E3-1220 (3.1 GHz, 4 cores, 8MB cache) .
  • Intel Xeon E3-1230 (3.2 GHz, 4 cores, 8MB cache) . (These are examples, other options might exist)
• Additionally supports second-generation Intel Core i3/i5/i7 processors. Specific options and speeds may vary.

Memory

• 4 DIMM slots supporting up to 32GB of DDR3 memory with 1333 MHz speed .

Storage

• Integrated SATA 3Gb/s controllers for data transfer.
• Supports various storage configurations including:
  • Up to 4 x 3.5-inch SATA drives (7200 rpm) with capacities ranging from 250GB to 1TB .
  • Up to 4 x 2.5-inch SATA SSDs with capacities ranging from 64GB to 256GB (smaller capacities compared to newer models) .
  • RAID configurations supported for data redundancy (SATA RAID 0, 1, 5, and 10 supported on motherboard) .

Graphics

• The base model doesn't include a dedicated graphics card, but it supports various options depending on configuration . Options might include AMD Radeon or NVIDIA Quadro professional graphics cards.

Form Factor

• Standard tower with dimensions: 45.3 x 17.5 x 41.9 cm (17.8 x 6.9 x 16.5 in) .

Connectivity

• Front Panel:
  • Ports may vary depending on configuration, but typically include:
    • USB 2.0 ports
    • Headphone jack
    • Microphone jack

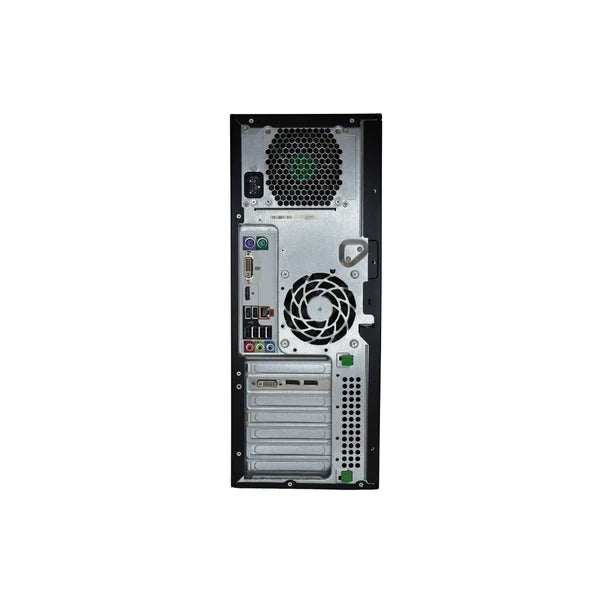

• Rear Panel:
  • Ports may vary depending on configuration, but typically include:
    • Multiple USB 2.0 ports
    • RJ-45 (Ethernet) port
    • Audio Line-In and Line-Out ports
    • Optional serial port and parallel port .

Other Features

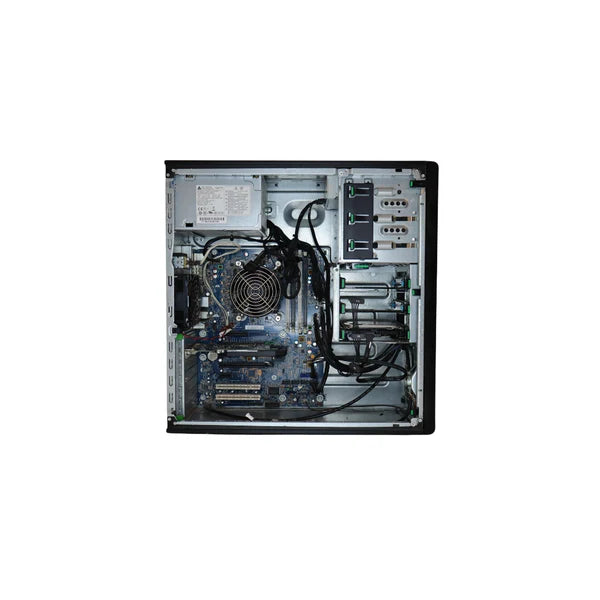

• Tool-less chassis for easy internal access and upgrades.
• 460W power supply .

Operating System

• Originally configured for Windows 7, but may be compatible with newer versions like Windows 10 with proper driver installation (newer driver availability for legacy models might be limited).
